Egypt Cairo Multi-Zone Cold Storage & Blast Freezer Project for French Fries Processing Plant

Core SEO Keywords: Egypt French fries cold storage, multi-temperature zone processing cold room, -35℃ blast freezer for fried food, Bitzer industrial cold storage, frozen food plant cold room Cairo

Project Overview

This is a full-set multi-temperature industrial cold storage project built in Cairo, Egypt, specially customized for a local large-scale French fries processing factory. The project covers frozen finished product storage, constant-temperature packing workshop, and ultra-low-temperature quick freezing room. Different temperature zones are designed to match the whole production chain of French fries from quick freezing, packaging to finished product storage.

To adapt to Egypt’s dry and high-temperature climate and 24-hour continuous industrial production, we adoptedGermany Bitzer high-power compressors and matched high-efficiency condensing units and industrial air coolers for each functional zone. The entire cold chain system runs stably with low energy consumption, meeting the factory’s large-volume, long-term, and high-standard frozen food production and storage needs.

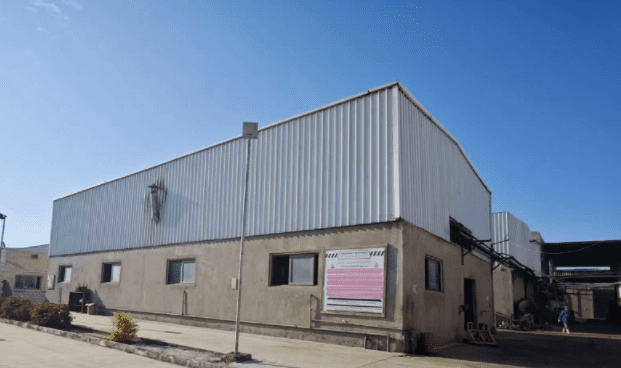

Project Location: Cairo, Egypt
Industry Application: Commercial French Fries Processing & Frozen Food Production

Complete Cold Storage Zone & Equipment Configuration

The project is divided into four independent functional areas with different sizes, temperatures and supporting refrigeration systems, realizing segmented temperature control for different production links:

2.1 Frozen French Fries Finished Storage (2 Sets | -20℃)

Used for long-term low-temperature storage of finished frozen French fries to lock product taste, texture and extend shelf life.

• Room Size: 15m × 16m × 9.6m (2 sets)

• Storage Temperature: -20℃ Constant Temperature

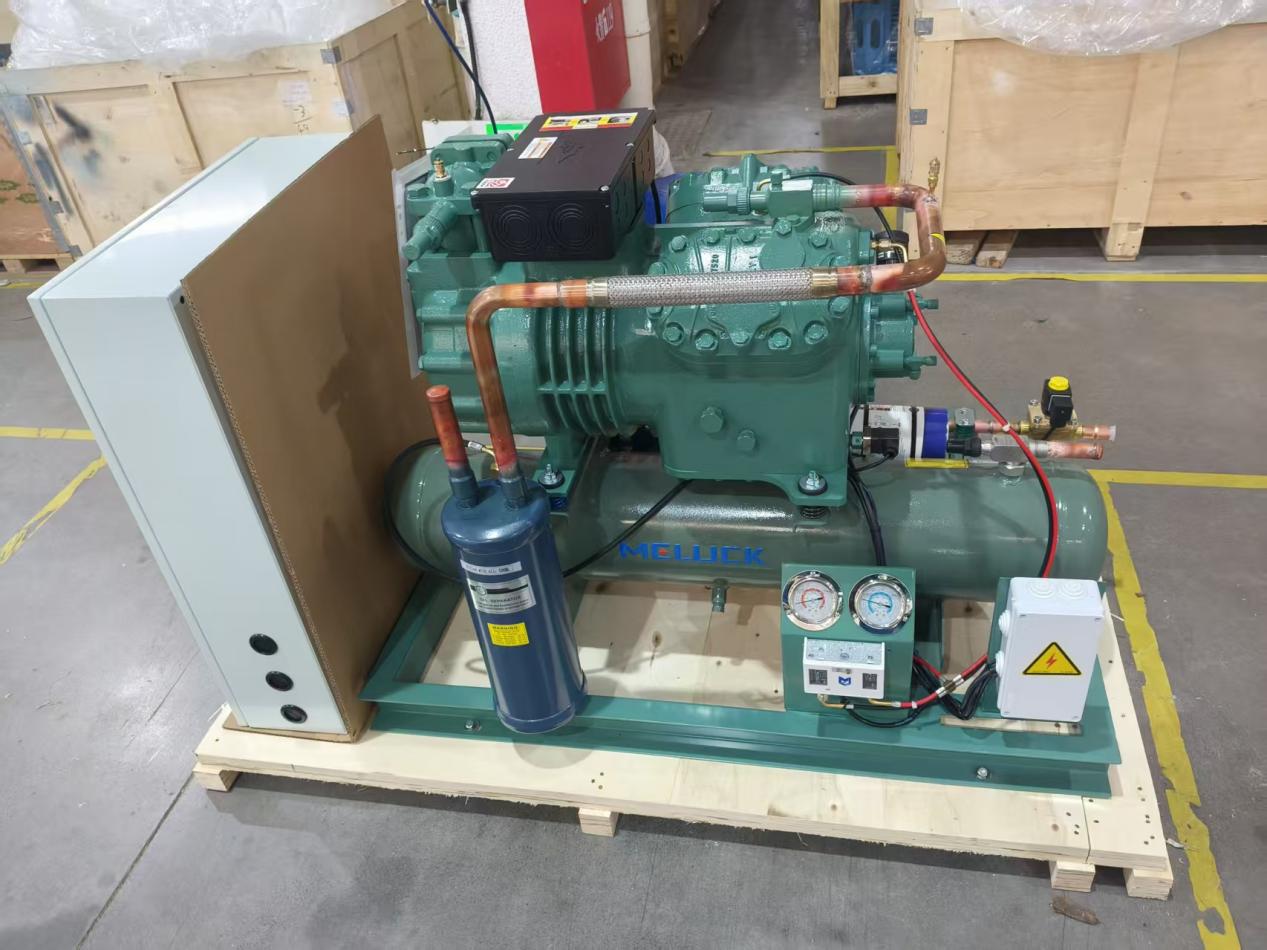

• Condensing Unit: BLGF-75JBYKA + FNV-700A, equipped with Bitzer 75HP Compressor

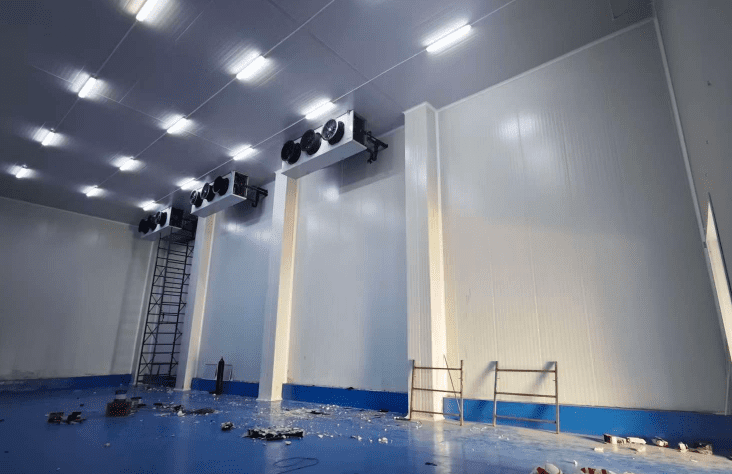

• Evaporator: MACL60.8/633EA × 2 units per room














2.2 Large-Capacity Finished Product Cold Storage (1 Set | -20℃)

Super-large space reserve warehouse for batch turnover and bulk storage of mass-produced French fries.

• Room Size: 11m × 28m × 9.6m

• Storage Temperature: -20℃ Constant Temperature

• Condensing Unit: BLGF-75JBYKA + FNV-700A, equipped with Bitzer 75HP Compressor

• Evaporator: MACL52.9/633EA × 3 units


2.3 Constant Temperature Packing Area (5~10℃)

Suitable for clean and constant-temperature packaging operation of semi-finished and finished French fries, avoiding product temperature rise and secondary thawing during packaging.

• Room Size: 15m × 16m × 5.5m

• Working Temperature: 5℃~10℃

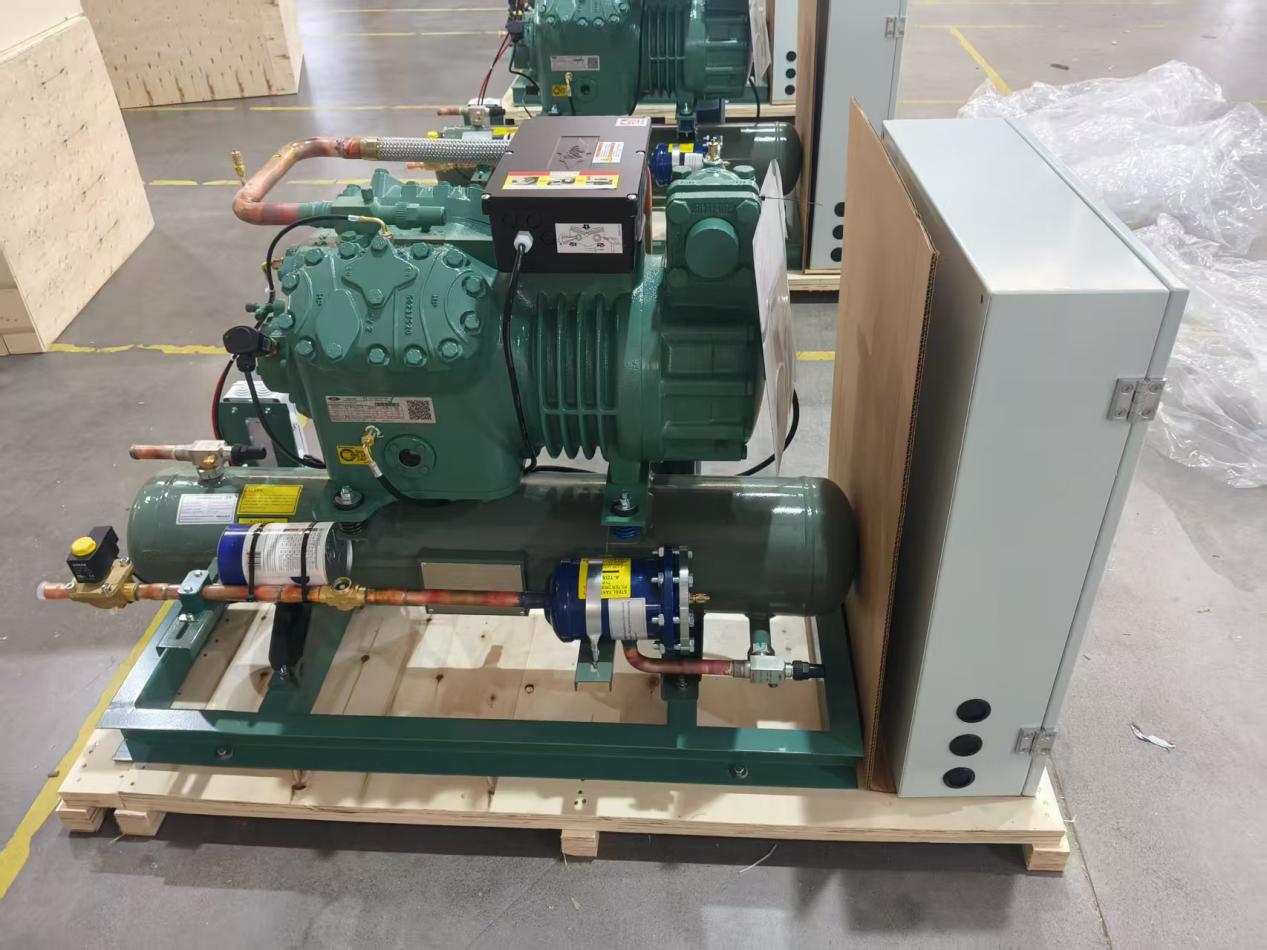

• Condensing Unit: JZBF25HBYWA-FB, equipped withBitzer 25HP Compressor

• Evaporator: DHFL28/404NA × 2 units


2.4 Ultra-Low Temperature Blast Freezer (-35℃)

Professional quick-freezing room for freshly produced French fries. Rapidly reduces product temperature in a short time, locks moisture and crispness, and prevents ice crystal precipitation to ensure product quality.

• Room Size: 7m × 9m × 4m

• Freezing Temperature: -35℃ Ultra-low Temperature

• Condensing Unit: BLGF-125JBYKA + MFV8065A, equipped with Bitzer 125HP Compressor

• Evaporator: LJ140-718EA Special blast freezing air cooler


Client Pain Points & Project Solutions

3.1 Original Production Problems

Before the construction of the standardized cold chain system, the client’s French fries production faced many bottlenecks: scattered freezing and storage spaces, unable to form a closed-loop production chain; ordinary warehouses could not reach ultra-low temperature quick-freezing standard, resulting in poor French fries taste and high defective rate; inconsistent temperature in packaging area caused product quality instability, failing to meet export food grade standards.

3.2 Targeted Custom Solutions

We designed a zoned temperature control system according to the French fries production process: ultra-low temperature blast freezing for fresh products, constant temperature buffer for packaging, and low-temperature frozen storage for finished products. All refrigeration equipment adopts high-power Bitzer compressors matched with high-efficiency condensers and customized air coolers, which perfectly adapts to the high-temperature and dry environment in Cairo, ensuring 24-hour continuous and stable operation of the production line.

Project Operation Advantages & Benefits

• Complete Production Cold Chain: Realizes integrated operation of quick freezing, packaging and storage, greatly improving the automation and standardization of French fries production.

• Greatly Reduced Product Loss: -35℃ rapid freezing locks product freshness, and stable -20℃ storage avoids thawing and deterioration, reducing food waste rate to below 2%.

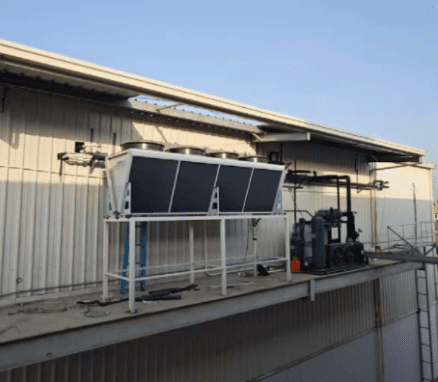

• Adapt to Local Climate: The matched high-temperature resistant condensing unit solves the problem of insufficient cooling capacity of industrial cold storage in hot seasons in Egypt.

• Energy-Saving & Stable Operation: Genuine Bitzer compressors feature low failure rate, strong power performance and lower comprehensive energy consumption, reducing long-term operating costs for the factory.

• Meet Export Standards: Standardized multi-temperature zone cold chain meets international frozen food production and export inspection requirements, helping clients expand overseas markets.


Our Strengths for African Industrial Cold Storage Projects

We have rich experience in designing and constructing industrial cold storage for food processing plants in Africa. For high-temperature areas such as Egypt, we can customize high-temperature resistant refrigeration systems and multi-temperature zone partition solutions according to local climate characteristics. We provide one-stop turnkey services including design, equipment supporting, on-site installation, commissioning and after-sales maintenance, focusing on frozen food factories, fruit and vegetable processing plants, and agricultural product cold chain projects.

Get Custom Cold Storage Solution

If you need multi-temperature zone industrial cold storage, blast freezer, and food processing supporting cold room for frozen food plants in Egypt, Africa and other regions, feel free to contact us. We provide free professional design, equipment matching scheme and project quotation.
