Dewatering Pump

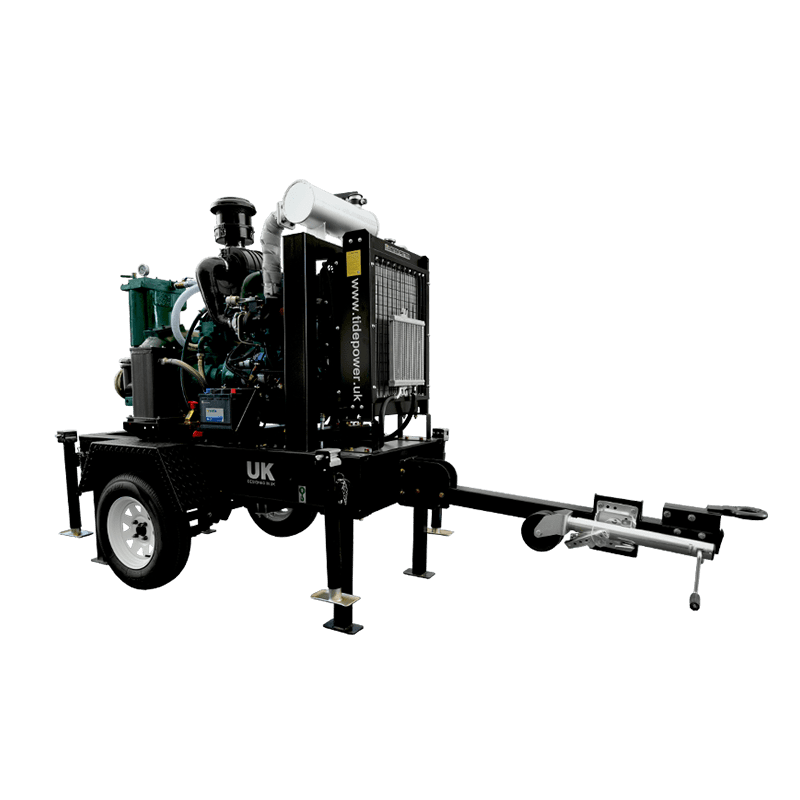

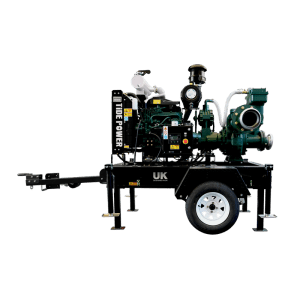

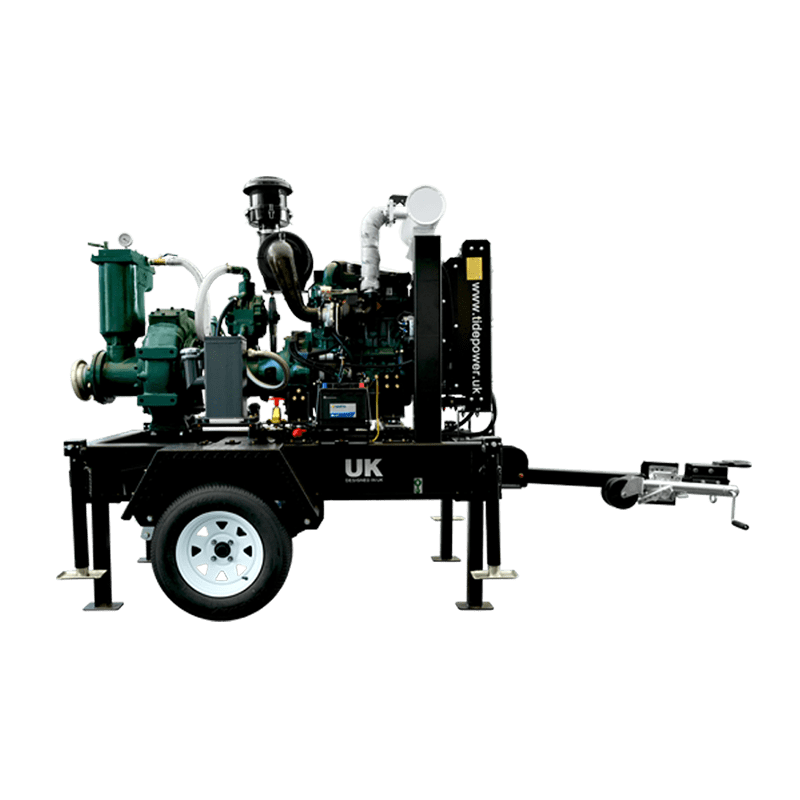

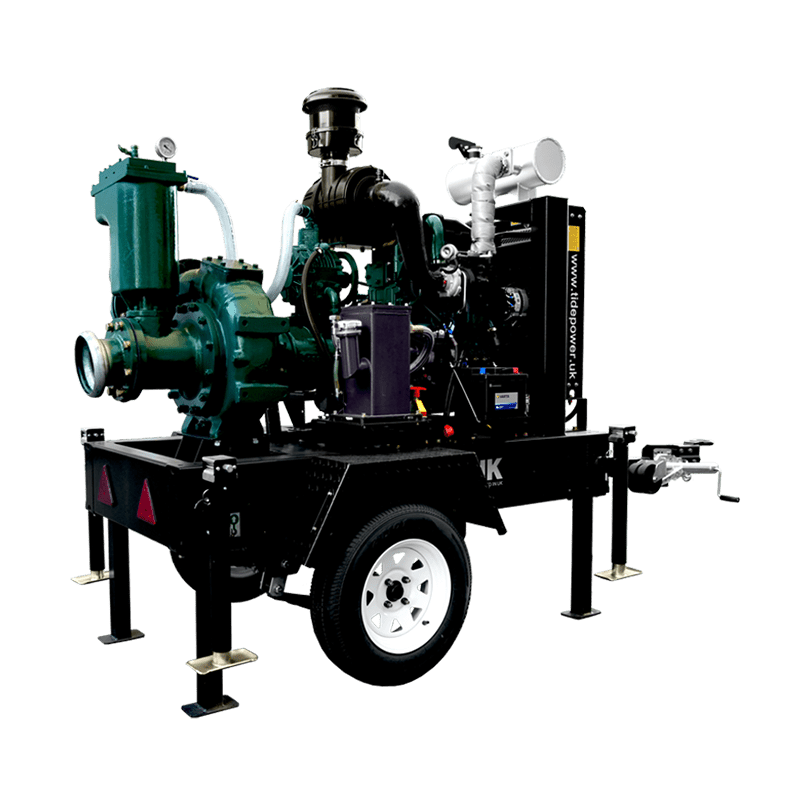

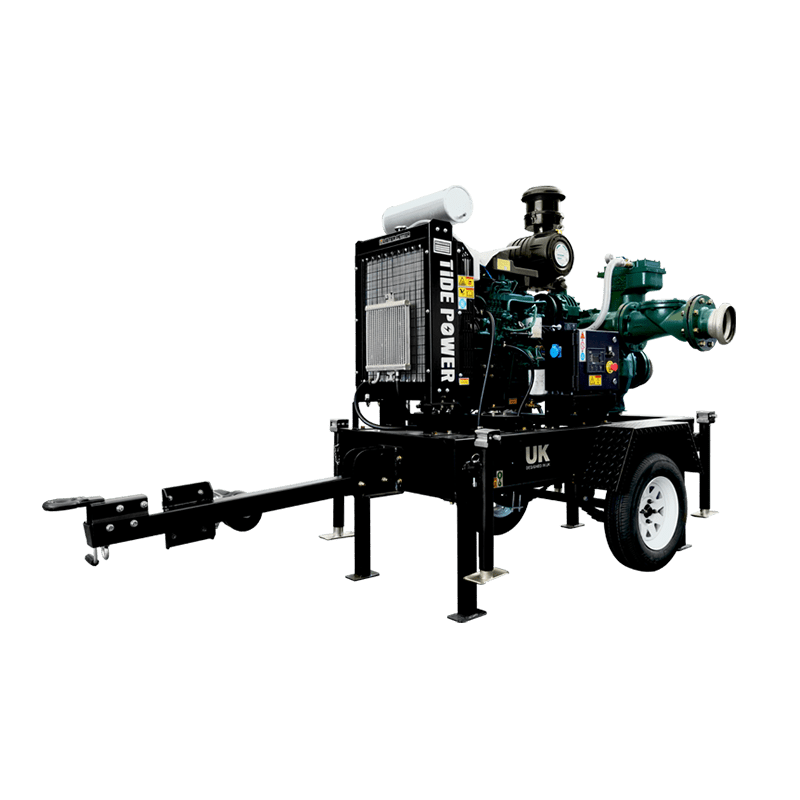

The B Series diesel dry suction pump unit is designed for applications requiring rapid deployment and high-head water transfer, including mine main drainage systems, long-distance water delivery, and emergency response. Equipped with a dry vacuum priming system, it achieves fast priming. The pump casing and impeller are made of cast iron and stainless steel for reliable operation in sandy or mildly corrosive conditions. Engine options include mechanical or electronic governors to meet varying efficiency and reliability requirements.
The unit operates reliably in temperatures ranging from -15°C to 50°C, with the dry vacuum priming system significantly reducing setup time. The 304 stainless steel impeller offers enhanced corrosion resistance and service life. The liquid-cooled engine with electronic governor ensures continuous, reliable performance.
The core advantages of the B Series lie in its dry vacuum priming system for rapid deployment; rated head up to 35 m for long-distance or high-lift applications; 304 stainless steel impeller for corrosion resistance; and liquid-cooled engine for stable operation.
Yes. The impeller is made of 304 stainless steel, which offers resistance to mild corrosion. Higher corrosion resistance materials are available upon request.
The vacuum system features oil-cooled design; routine oil level checks and filter cleaning are sufficient for normal operation.
The unit operates reliably from -15°C to 50°C, adapting to various climatic conditions.
The engine can be equipped with either mechanical or electronic governors to meet different efficiency and reliability requirements.
