Dewatering Pump

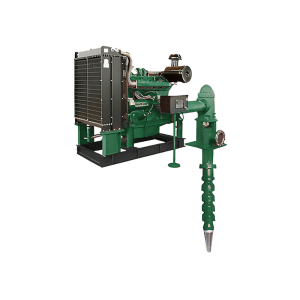

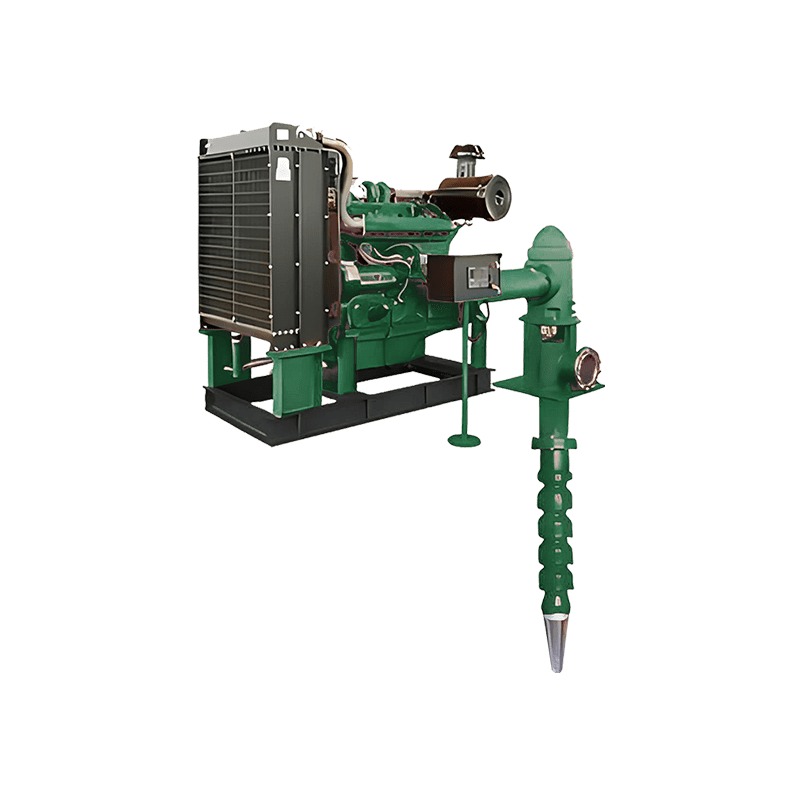

The C Series diesel long shaft deep well pump is designed for deep well water extraction, mine dewatering, and groundwater development. Featuring a long-shaft transmission structure with the engine positioned above ground and the pump submerged in the well, it is suitable for wells with a diameter of at least 550 mm. The unit delivers high flow and high head with a compact design, making it ideal for agricultural irrigation, industrial water supply, and mine drainage.
The unit operates reliably in temperatures ranging from -15°C to 50°C, delivering up to 350 m³/h flow and 150 m head for deep water extraction. The integrated engine and pump design minimizes footprint and simplifies installation. The long-shaft structure allows disassembly and maintenance of submerged components without full-unit extraction.
The core advantages of the C Series lie in its maximum downhole diameter of 550 mm for common deep well applications; flow up to 350 m³/h and head up to 150 m; compact integrated design; easy maintenance with long-shaft structure; and reliable operation with wear-resistant materials.
The applicable depth depends on the required head and number of stages; with a maximum head of 150 m, it meets the needs of most deep well applications.
Yes, a concrete foundation is recommended to ensure stability, considering equipment weight and operational vibration.
The unit operates reliably from -15°C to 50°C, adapting to various climatic conditions.
The long-shaft structure allows easy disassembly; submerged components can be serviced through the wellhead without full-unit extraction.
